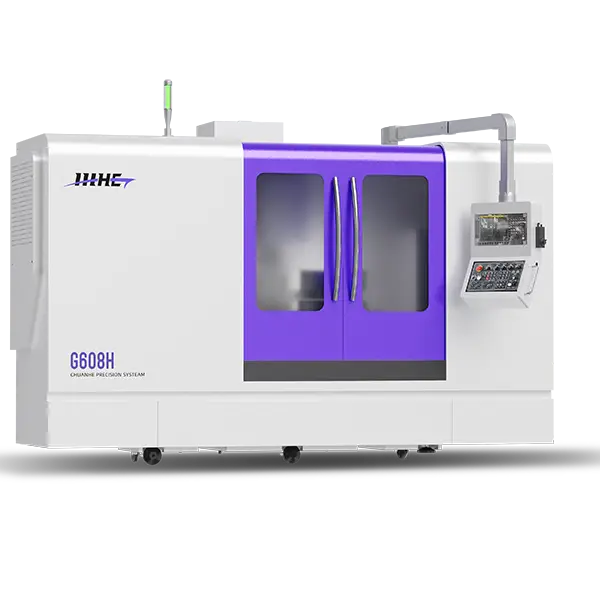

	Specifications		G608H
Processing range	Worktable working area(mm)		800×600
	Max distance from worktable surface to spindle center(mm)		700
	Max front and back movement(mm)		800×600
	Maximum load capacity of the table (including suction cups)(kg)		800
Worktable	Worktable drive method		Hydraulic proportional automatic control
	Worktable speed(m/min)		3-28
Column(Front and rear)	Front and rear MPG rate	Handwheelpertick(mm)	0.01/0.1/1
	Front and back handwheel feed(mm)	inch feed(mm)	0-35
	Front and rear automatic feed rate(mm/min)		0-1500
Grinding wheel	Grinding wheel size(mm)		φ400×127×20-60
	Spindle diameter(mm)		φ150
	Spindle speed(rpm)		0-1500
	Up and down MPG feed rate(mm)	Handwheel Increment per Division(mm)	0.001/0.01/0.1
	Up and downfast movementrate(mm/min)		0-1500
Motor	Spindle servo motor(kW)		11
	Front and rear servo motor (AC servo)(kW)		1.1
	Up and down servo motor(AC servo)(kW)		1.7
	Hydraulic motor(kW)		3.75
	Flush motors(W)		550
Size	Packing Dimensions (L×W×H)(mm)		3500×2500×2350
	Footprint (L×W×H)(mm)		4300×3100×2350
	Net weight/gross weight of the machine(kg)		5500/6000
	Power required for power supply (without accessories)r(kVA)		20
Working Accuracy (Test Piece)	The parallelism of the machined face to its base(mm)		300:0.003
	Surface roughness(um)		Ra0.12
