C200M-300 Lathe Technical Specification
1.1 Structural Design

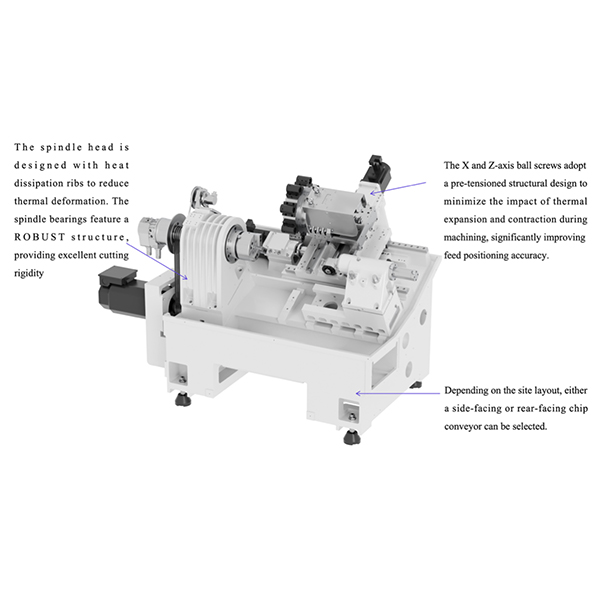

This series of horizontal CNC lathes with turret and tailstock features an integrated 30° slant bed. Structural analysis was conducted at the design stage to minimize the effects of heavy cutting and high-speed movements. Detailed analysis was performed on the magnitude of forces, force application points, and deformation levels to ensure sufficient rigidity.
1.2 Material and Manufacturing Process
The machine body is constructed from high-grade Meehanite cast iron. Internal stresses are eliminated through both artificial aging (heat treatment) and natural aging processes, ensuring optimal rigidity, stability, and long-term precision retention.
1.3 Core Configuration
The machine is standard equipped with a Sanwa 12-station servo turret and a precision hydraulic tailstock. It is capable of automatically performing machining operations such as internal and external cylindrical surfaces, internal and external threading, taper surfaces, arc surfaces, end faces, grooving, and chamfering on both shaft-type and disc-type workpieces.
Standard Accessories
| Item Name | Specification | Quantity | Remarks |
| Foot Pedal Switch | Green*1，Yellow*1 | 2 | |
| Hex Key Wrench Set | 1 | ||
| Leveling Blocks | 4 | ||
| Leveling Screws | 4 | With Machine | |
| Machine Operation Manual | HZCH | 1 | |
| CNC System Operation Manual | FANUC | 1 | |
| Certificate of Conformity | HZCH | 1 | |
| Packing List | HZCH | 1 | |
| Laser Calibration Report | 2 | USB Disc | |
| Stainless Steel Tubing | 1 | ||
| Reduction Sleeve (φ32) | φ16，φ20，φ25 | 3 | 1 Each |
| Tool Clamping Block | 6 | ||
| Chuck Wrench | 8 Inch | 1 | |
| Packing List | HZCH | 1 | |
| Items not installed on the machine will be placed inside the accessory box. | |||
Configuration List
| Item | CHUANHE HANGZHOU | |
| Key Specifications | ||
| Machine Model | C 200M -300 |
|
| Processing Range | Maximum Swing Diameter Over Saddle | Φ400mm |
| Maximum Turning Diameter | Φ320mm | |
| Standard Turning Diameter | Φ200mm | |
| Swing Diameter Over Cross Slide | Φ300mm | |
| Maximum Turning Length | 250mm | |
| Chuck Size | 8″ | |
| Bar Capacity Diameter | Φ52mm | |
| Spindle | Spindle Nose Type | A2-6 |
| Spindle Bearing Model | Front NN3020 + 100, Rear N1017 | |
| Spindle Through Hole Diameter | Φ66mm | |
| Spindle Drive Method | Direct Drive Electric Spindle | |
| Spindle Transmission Ratio | 1:1 | |
| Maximum Torque | 119Nm | |
| Maximum Spindle Speed | 4500rpm | |
| X&Z Axes | Maximum Travel of X/Z Axis | 160+20/290mm |
| Rapid Feed Rate of X/Z Axis | 30 m/min | |
| Guideway Type of X/Z Axis | 30mm Linear Guide Way | |
| Ball Screw Diameter/Pitch of X/Z Axis | Φ32mm/Pitch10(X)/Pitch12(Z) | |
| Positioning Accuracy of X/Z Axis | 0.008/1000mm | |
| Repeatable Positioning Accuracy of X/Z Axis | ≤0.005mm | |
| Motor Power | X Axis Motor | 1.8kW(bisc12b/3000) |
| Z Axis Motor | 1.8kW(bisc12/3000) | |
| Drive Motor | 1.4kW(bisc12b/2000) | |
| Hydraulic Station | 1.5kW | |
| Water Pump | 0.55kW | |
| Air Conditioner | 0.3kW | |
| Turret | Turret Model | BMT40-12T |
| Tool Change Time (Adjacent Tool / Opposite Tool) | 0.2sec/0.8sec | |
| Square Tool Holders | 16mm | |
| Round Tool Holders | Φ25mm | |
| Tailstock | Spindle Internal Taper | MT#4 |
| Core Axis Control Method | Programmable Hydraulic System | |
| Tailstock Body Travel | 270mm | |
| Tailstock Body Movement Method | Mechanical | |
| Others | Standard CNC Controller | FANUC |
| Voltage/Power Requirements | 380V/30KVA | |
| Hydraulic Tank Capacity | 45L | |
| Overall Dimensions (L × W × H) | 2200×1600（+1000 Chip Conveyor）×1700mm | |
| Equipment Weight | 3100KG | |
Get Free Quote of C200M-300 Lathe Technical Specification
Request Free Quote for C200M-300 CNC Lathe Technical Specification, Turning Machine Parameters and Details
List of Critical Components
| NO. | Item Name | Model/Specification | Brand |
| 1 | CNC System Controller | FANUC-Oi-TF | FANUC |
| 2 | Servo Drive Motor | bisc12b/3000（X），bisc12/3000（Z）, bisc12b/2000（Power） | FANUC |
| 3 | Spindle Bearings | Front NN3020 + 100, Rear N1017 (P4 grade) | NSK |
| 4 | Guideways | HSR30R2UUC1E+520LH-II（X） HSR30LR2UUC0E+800LH-II（Z） | THK |
| 5 | Ball Screw | SDA3210VAZS-5TTG0+620LC3（X） SDA3212VAZS-5TTG0+755LC3（Z） | THK |
| 6 | Fixture | X3-08A6 | SANLIU (DOMESTIC) |
| 7 | Hydraulic Cylinder | XH-852T | SANLIU (DOMESTIC) |
| 8 | Electrical Components | LC1N0910M5N(AC Contactor) | SCHNEIDER |
| 9 | Turret | BMT40-12T | SANWA |
| 10 | Ball Screw Bearings | D-2 BSB2562-SU（P4 Grade） | FAG |
| 11 | Lubrication Pump | YET-V2P2 220V | ISHAN (TAIWAN CHINA) |
| 12 | Control Cabinet Cooling | EA-300-1225 | WINHEE (DOMESTIC) |
| 13 | Machine Bed | Meehanite Cast Iron One-piece Slant Bed with Electro-Hydraulic Integration | CHUANHE |
| 14 | Hydraulic Components | HK-2FA-A-B(Chuck) | HYKO (DOMESTIC) |
| 15 | Chip Conveyor | Side and Rear Chain-Type Automatic Chip Conveyor | JIBAO |

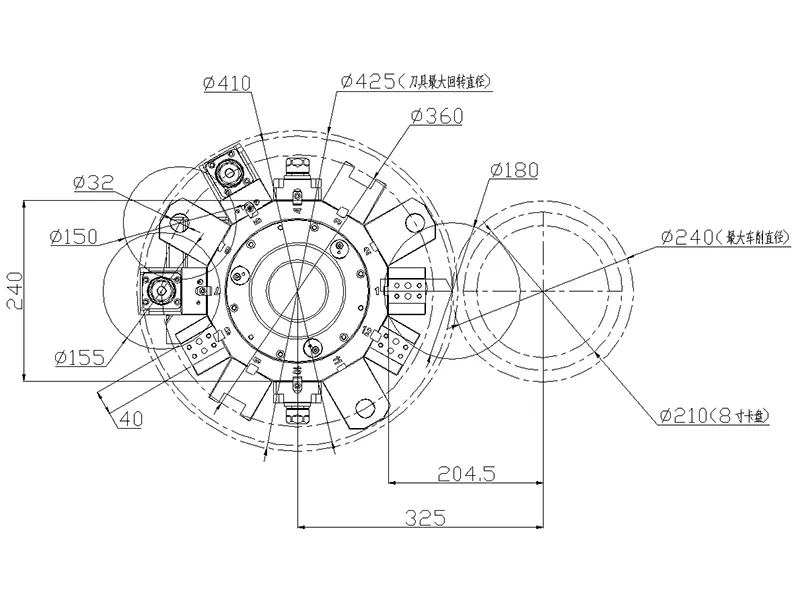

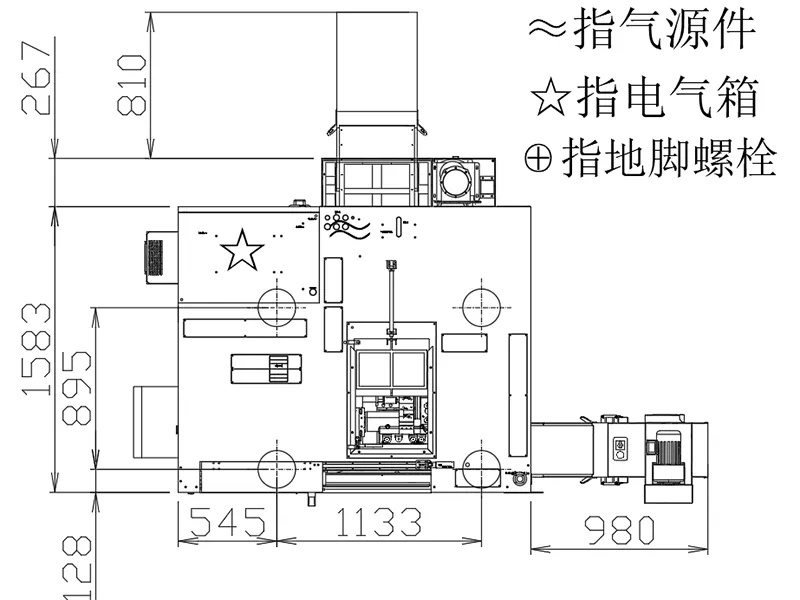

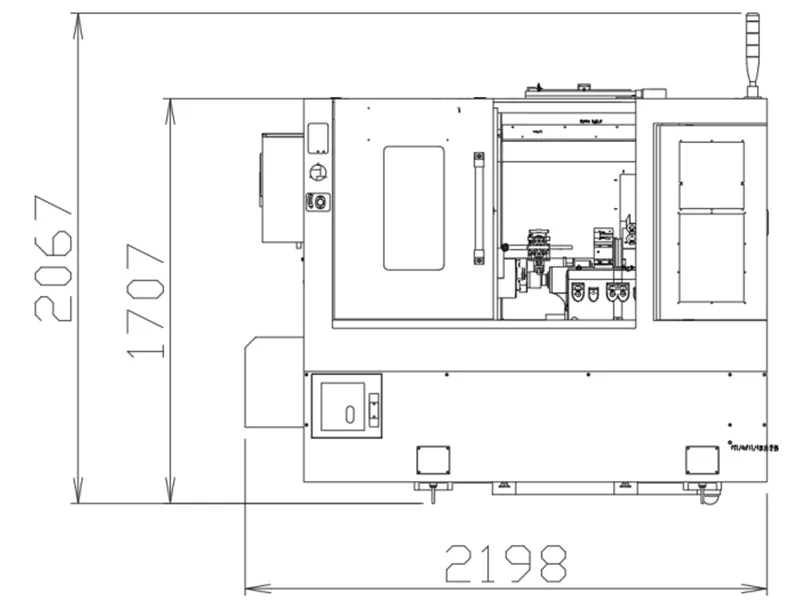

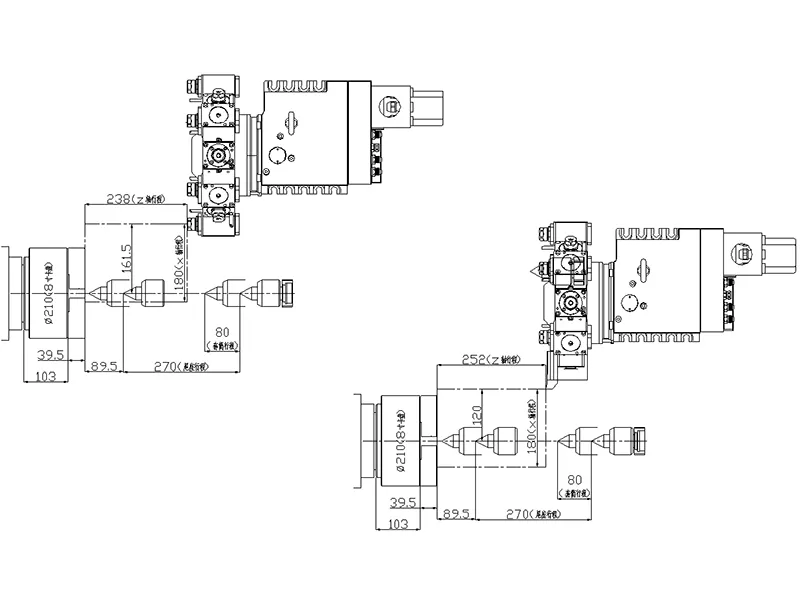

Mechanical Interference Diagram & Overall Dimension Drawing
Optional Item
| NO. | Item | Function | Specification/Model |
| 1 | High-Speed Centrifugal Pump | ||
| 2 | Oil Mist Collector | ||
| 3 | Safety Door Lock | ||
| 4 | Bar Feeder | ||
| 5 | Pneumatic Sliding Door | ||
| 6 | Tool Setter | ||
| 7 | Part Catcher | ||
| 8 | Chip Conveyor | ||
| 9 | Oil-Water Separator | ||
| 10 | Linear Encoder |
